iBotRun - Machinery & Automation Solution Supplier
gummy-bear-packaging-machine

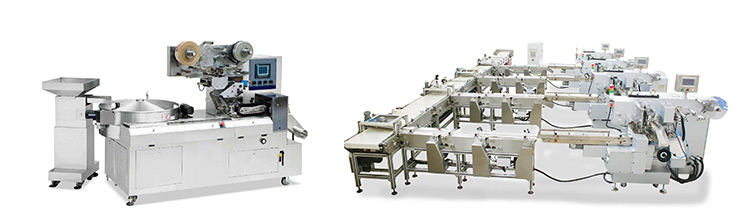

Gummy Packaging Machine

Gummy packaging machine for sale

What is gummy packaging machine?

Gummy packaging machine is an automated packaging machine for filling fondant into plastic packaging bags and performing operations, such as sealing and cutting.
gummy-packaging-equipment

Composition of gummy packaging machine

Gummy bear packaging machine is mainly composed of a feeding system, packaging material supply system, heat sealing mechanism, cutting mechanism, conveying mechanism, control system, and other parts.

Working principle of gummy packaging machine

The soft sugar flows out from the feeding system and enters the packing material supply system through the conveyor belt, fixes the plastic packing bag on the packing platform, then seals the mouth of the packing bag through the heat-sealing mechanism, then fills the soft sugar into the packing bag, and finally cuts the packing bag into small packing bags of a certain size through the cutting mechanism.

Feature of gummy packaging machine

a. Gummy packaging machine is equipped with double inverter control, bag length is set and cut, no need to adjust the empty go, one step, save time and film.

b. Human-machine interface, convenient parameter setting.

c. Gummy bear packaging machine is equipped with a man-machine interface and convenient parameter setting.

d. Gummy packaging equipment with fault self-diagnosis function.

e. High-sensitivity photoelectric eye color scale tracking, digital input sealing, and cutting position make the sealing and cutting position more accurate.

f. Temperature-independent PID control is better suited for all kinds of packaging materials.

g. Positioning stop function, no sticking knife, no waste of wrapping film.

h. Simple transmission system, more reliable work, maintenance is more convenient.

i. All controls of gummy manufacturing equipment are realized by software, which is convenient for function adjustment and technology upgrading.

Technical parameter of gummy packaging machine

ItemParameter
Film widthMax.250mm
Bag length65~190mm / 120~280mm
Bag width30~110mm / 90~220mm
Product heightMax. 55mm
Film roll diameterMax.320mm
Packing speed60-330 packs/min
Power supply220V,50/60HZ,2.4KVA
Machine size(L)3770x(W)670x(H)1450
Machine massApprox. 550Kg
RemarksInstallation of an inflatable device is possible

Application of gummy packaging machine

Gummy packaging machine is suitable for packaging soft candy, candied fruit, fruit and vegetable slices, mountain slices, soft candies, custard pies, chocolates, slices of bread, instant noodles, moon cakes, medicines, daily necessities, industrial parts, cartons or trays and other kinds of regular objects.

Gummy bear packaging machine is widely used in candy manufacturing enterprises, food processing factories, supermarkets, and other places.

Type of gummy packaging machine

Gummy weighing and packing machine

Working principle of gummy weighing and packing machine

Gummy weighing and packing machine mainly consists of multi-head scale weighing and filling machine and packing machine.

Firstly, the multi-head scale will weigh the soft candy according to the set weight automatically.

Then, the weighted soft candy will be transported to the packing machine through the pipeline for automatic packing operation.

Advantages and disadvantages of gummy weighing and packing machine

Advantages
a. Quickly and automatically complete the weighing and packaging of fondant, improving production efficiency.

b. Adapts to different weights of fudge packaging needs, reducing the waste of manual weighing and packaging by manual operation.

c. Ensures the quality and hygiene of the fondant and reduces the risk of cross-contamination.
Disadvantages
a. Weighing devices require constant testing and calibration, regular maintenance and repair, and high costs.

b. The system is complex and requires a certain level of skill on the part of the operator.

c. To achieve accurate weighing operations, it is necessary to purchase high-precision weighing devices and well-functioning packaging machines, which are more expensive.

Future prospects of gummy weighing and packing machine

With the continuous expansion of the jellybean market, gummy weighing and packaging machines will be more widely used in the future. At the same time, with the continuous progress of science and technology, fudge weighing and packaging machines will also continue to improve the level of technology, intelligence, strong autonomy, ability to accurately and quickly complete the weighing and packaging, reduce energy loss, and more to ensure product quality.
gummy-packaging-machine

Gummy counting and packaging machine

Working principle of gummy counting and packaging machine

Gummy counting and packaging machine mainly consists of soft candy counting machine and packaging machine. The fudge counting machine identifies the size and image of the fudge through sensors, detects the quantity of fudge in each feeding respectively, and completes the counting of fudge. Then, the fudge will be conveyed to the packing machine according to the set counting value for automatic packing operation.

Advantages and disadvantages of gummy counting and packaging machine

Advantages
a. Accurately calculates the quantity of fudge, avoiding the problems of inaccurate weighing and irregular packaging.

b. Adapts counting technology for different models and sizes of fondant, reduces wastage of fondant product weight, and effectively ensures packaging consistency.

c. Saves labor time, improves packaging efficiency, and is suitable for mass production environments.
Disadvantages
a. The system is complex and requires regular maintenance and repair, resulting in higher maintenance costs.

b. Pharmaceutical, food, and other companies have strict quality testing standards for the production of fudge. Allowing only a small margin of error for gummy packaging equipment, a fudge counting machine may not be such an ideal choice.

c. High-speed counting requires clear quality standards and pre-equipment, which are expensive and costly to maintain.

Future prospects of gummy counting and packaging machine

With the continuous improvement of people's health needs, the quality requirements for food are getting higher and higher. The future prospect of soft candy counting and counting packaging machines is very broad, and the market demand is getting bigger and bigger. Automatic counting packaging will become the development trend of the soft candy market. And, with the continuous progress of technology, more intelligent and autonomous counting packaging will be realized, which will bring a qualitative leap for enterprise management.

How to order gummy packaging machine?

iBotRun offer automated manufacturing facilities help customer solve and reduce labor cost, increase work efficiency, create huge wealth.
If you are interested in our gummy packaging machine or have any questions, please write an e-mail to info@ibotrun.com, we will reply to you as soon as possible.
